the apollo visual sonic tank contents gauge is an electronic sonic gauge. it operates via a transmitter that sits on the tank and a receiver which plugs into a ‘mains’ socket. the transmitter on the tank reads the contents level inside the tank. then, sends a signal to the receiver which displays on the screen how much contents is left in the oil tank. as a result, the main advantage of these gauges is that it provides easier visibility to the contents level inside your tank (it saves you having to go outside to the tank itself, you can now view the level from the comfort of the indoors).
the apollo visual also has a screen on the transmitter which is there to assist the tanker driver when filling the tank. it measures the first 1-meter depth below the top of the tank, as a result, it informs the driver when the tank is getting full.
click here for: atlantis apollo visual sonic tank contents gauge detail sheet

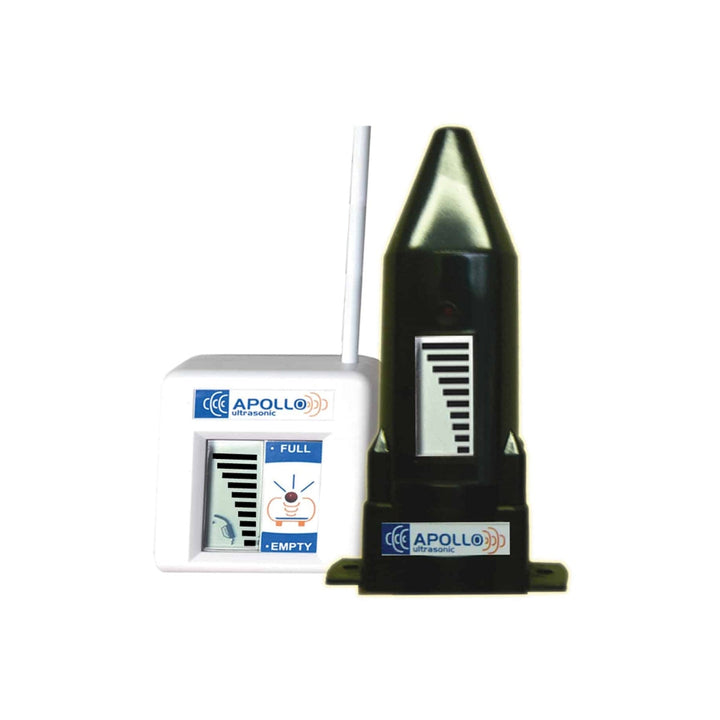

the apollo visual product consists of:
- 1 x apollo ultrasonic tank transmitter
- 1 x apollo indoor receiver plug
- 2 x stainless steel fitting screws
- 1 x weather seal
specifications:
- tank depth measurement: min depth 0.1m, max 3m.
- max communication distance: 200m normal "line of sight" conditions.
- power supply: receiver 150-250v, 50-60hz meets en60335.
- transmitter: 3 volt lithium cell.
- max and min operation temp: operating temperature range -10 c to +60 c.
- not suitable for pressurised containers.
- suitable for use in tanks for the storage of diesel fuel, kerosene, gas oil types a2, c1, c2, and d as defined by bs 2869. check with the manufacturer and/or supplier before using with any other fluids.
- operating temp. range: -10º to +60 º c
- power supply: receiver: 150-250v, 50-60hz / transmitter: 3 volt lithium cell
- display:full, warning, empty
warranty:
this unit carries a 1 year warranty when used under normal operating scenarios. warranty is void if transmitter seal broken.
| Brand | Atlantis - UK |
|---|
