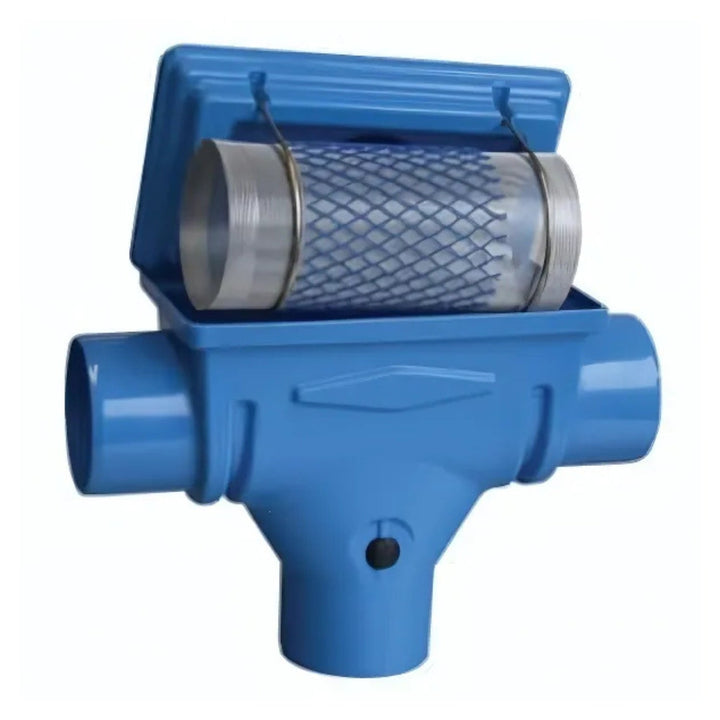

Atlantis Compact Rainwater Filter

the 3p compact filter is ideal where there is little room and no height difference available between inlet and outlet. it can be installed within rainwater tanks.

the 3p compact filter is ideally suited for use in conjunction with a 3p overflow siphon and the 3p calmed inlet. low maintenance, self cleaning, depending on the level of solids in the incoming rainwater.

key features:

• connection capacity for roof areas upto 150 m²
• all connections dn 100 (110mm od).
• no height difference between inlet and outlet.
• mesh size of filter cartridge 0.7 x 1.7mm.

please note:

the cleaned water can be used for domestic purposes (in washing machines, toilet flushing) for garden irrigation; it is also suitable for using in commercial and public buildings and within the industry sector.
