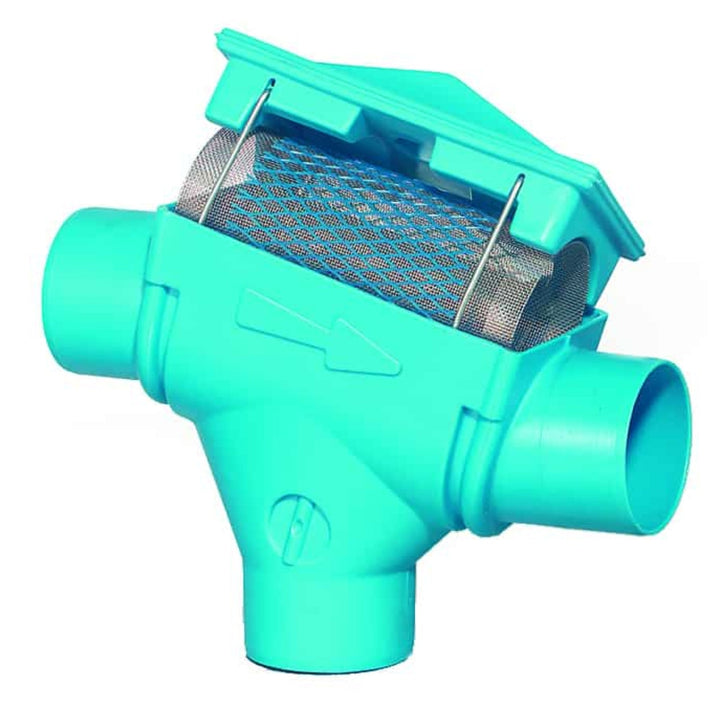

Atlantis Patronen Filter

the pf filter is designed with a level drop, this along with its very smooth surface structure allows excess dirt to be rinsed straight through into the sewer or overflow. the filter cartridge mesh is stainless steel within plastic housing and is self-cleaning, though regular inspection is recommended. mesh size of filter cartridge 0.55mm. this product can be retrofitted after tank installation if required. the small height difference of 66mm between rainwater inlet and wastewater outlet increases water capture.

click here for: patronen filter detail sheet

how it works:

1. rainwater is led onto the filter cartridge.
2. the filter cartridge cleans the rainwater. the cleaned water is led through the calmed flow inlet into the rainwater tank.
3. due to the steep inclination of the filter and its smooth surface structure the dirt is quickly rinsed away into the sewer.

technical data:

• filter according to din 1989-2, type c
• connection inlet: dn 100 (110mm od)
• outlet into tank: dn 100 (110mm od)
• outlet into sewer: dn 100 (110mm od)
• the height difference between rainwater inlet and outlet just 66 mm.
• housing material: polyethylene
• filter cartridge: stainless steel
• material poly-net: polyethylene
• mesh size: 0.7 x 1.7 mm
• weight: 1.4 kg
