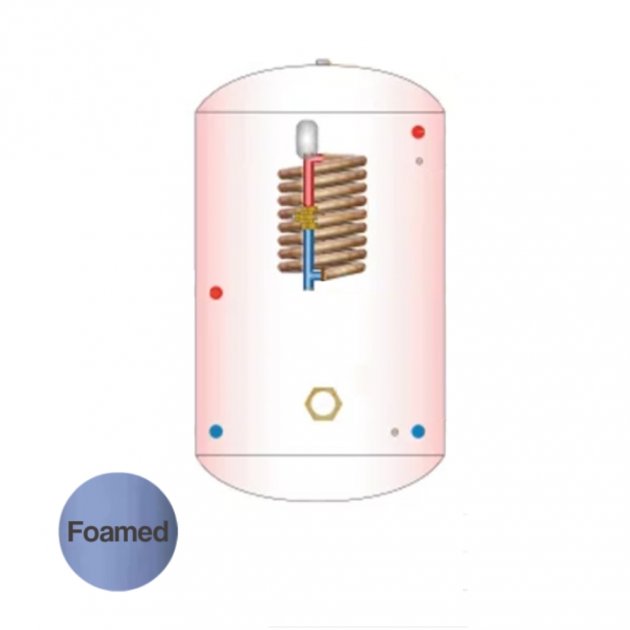

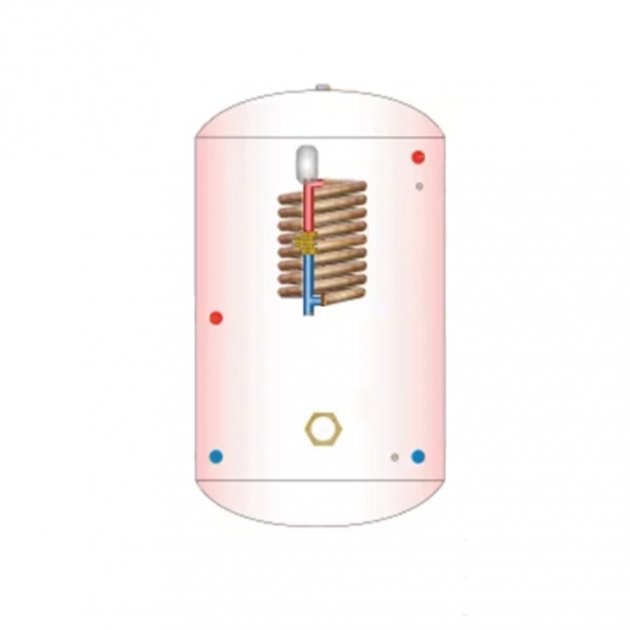

Telford Sealed System Thermal Store Cylinder

the telford sealed system is a compact thermal store cylinder designed to efficiently store and distribute hot water. it is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. the cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. moreover, for added convenience and security, a 3kw immersion heater is included as a backup.

key features

• combined hot water storage cylinder and feed / expansion tank
• comes with a blend valve/ shock arrestor/drain-off valve
• removes the need for feed & expansion tank in roof space
• factory fitted 3kw immersion heaters
• fitted 15mm (g 1/2) threaded drain cock boss
• ideal for retro-fit applications
• fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
• available in 115 - 300 litre capacities
• attractive blue finish
• easy to install time-saving option
• manufactured in accordance with bsi566-2002 (part l)
• bespoke options available
• supplies mains pressure hot water and high flow rates
• up to 3 bar max pressure,15-18l liters per minute domestic flow rate
• integral parts easily accessed
• comes with a 10 year gaurantee when serviced yearly

technical specifications:

• brand: telford
• product code: tss115/1120
• item: cylinder
• colour: blue
• cylinder height: 900mm
• cylinder diameter: 450mm
• capacity: 115 litre
• material: copper
• style: modern
• immersion heater: 3kw
• hot draw off: 22mm
• cold feed: 22mm
• thumb vent: 22mm
• sealed heating flow: 28mm
• sealed boiler flow: 28mm
• made in: uk
