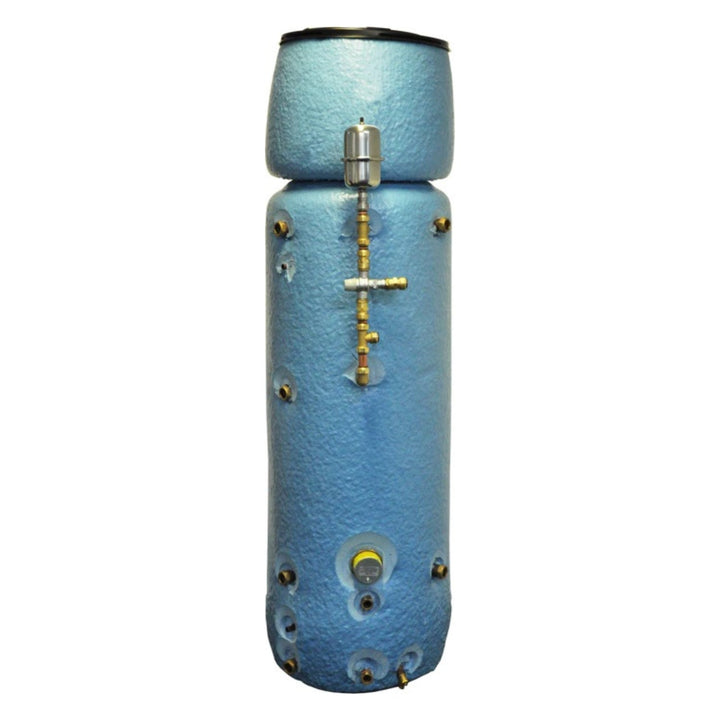

Telford Tristar Thermal Store Open-Vented Combination Cylinders Copper Blue

telford tristar thermal store open-vented combination cylinder copper blue is designed for installations with vented heat sources and only vented heating systems. all stores come with a blend valve/shock arrestor factory fitted and a 3kw immersion as a backup. this thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. the filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. this cylinder is a magical thing that beautifies your place to another level.

key features:

• available in stainless steel or copper
• direct, indirect or twin coil options
• supplies mains pressure hot water & high/low rates
• up to 3 bar max pressure / 15 litres per minute domestic low rate
• top-up stored water annually
• no pump pipes required
• integral parts easily accessed
• steel casing with white finish
• 2 x factory 3kw immersion heaters
• fully pre-plumbed ready to install
• fully insulated to minimize any heat loss
• domestic hot blended set to 47°c
• 22mm non-scaling ribbed heat exchanger coil
• over-fill sensor & domestic safety shut-off valve
• no external f&e tank needed
• exempt from g3 of the building regulations
• 5 year warranty* if the cylinder is registered and serviced annually

technical specifications:

• brand: telford
• product code: tsc135/1011
• cylinder type: combination / vented
• cylinder height: 1200mm
• cylinder diameter: 450mm
• capacity: 135 litre
• immersion heater rating: 3 kw
• orientation: vertical
• material: copper
• colour: blue
