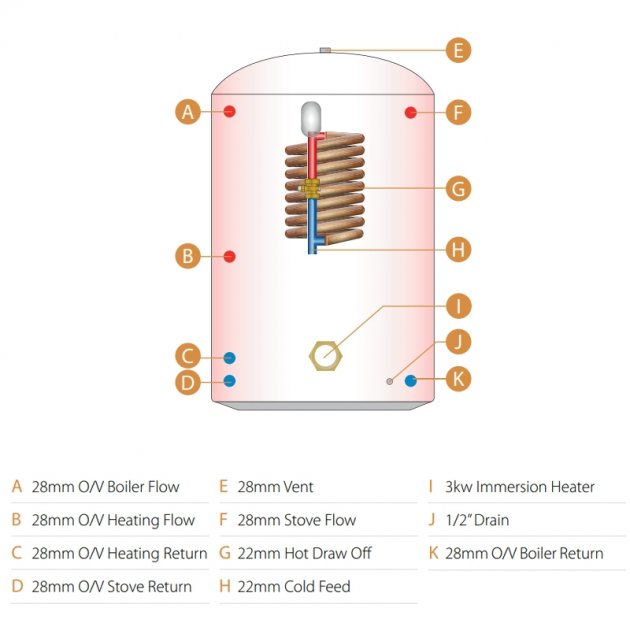

Telford Tristar Thermal Store Open-Vented Cylinders With Sealed Boiler Copper Blue

telford tristar thermal store open-vented cylinders with sealed boiler copper blue is designed for installations with vented solid fuel and heating systems as well as a sealed system boiler. all stores come with a blend valve/shock arrestor factory fitted and a 3kw immersion as a backup. this thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. the filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. this cylinder is really a magical thing that beautifies your place to another level.

key features:

• available in stainless steel or copper (combination type only available in copper)
• direct or indirect – single, double or triple coil options
• combined hot water storage cylinder and feed / expansion tank
• also available in grade 2 & grade 1 copper
• removes need for feed & expansion tank in roof space
• factory-fitted 3kw immersion heater(s)
• fitted 15mm (g ½) threaded drain cock boss
• ideal for retro-fit applications

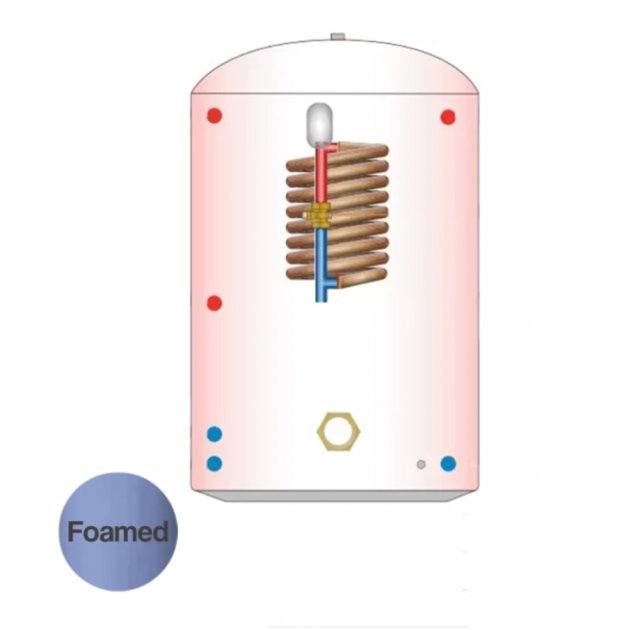

• fully insulated with (50mm) foam to minimise any heat loss
• available in 115- 300 litre capacities
• attractive blue finish
• easy to install time-saving option
• manufactured in accordance with bsi566:2002 (part l)
• bespoke options available
• supplies mains pressure hot water & high flow rates
• up to 3 bar max pressure / 15 18l litres per minute domestic flow rate
• integral parts easily accessed
• 10 year warranty*

technical specifications:

• brand: telford
• product code: tsv144/4112
• cylinder type: standard/ vented
• cylinder height: 1400mm
• cylinder diameter: 450mm
• capacity: 144 litre
• immersion heater rating: 3 kw
• orientation: vertical
• material: copper
• colour: blue
