Telford Tristar Vented Thermal Store Cylinders Solar Thermal + Sealed Boiler Coils Copper Blue
telford tristar vented thermal store cylinders solar thermal + sealed boiler coils copper blue is designed for installations with vented solid fuel and heating systems as well as a sealed system boiler and solar. all stores come with a blend valve/shock arrestor factory fitted and a 3kw immersion as a backup. this thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. the filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. this cylinder is really a magical thing that beautifies your place to another level.
key features:
- available in stainless steel or copper (combination type only available in copper)
- direct or indirect – single, double or triple coil options
- combined hot water storage cylinder and feed / expansion tank
- also available in grade 2 & grade 1 copper
- removes need for feed & expansion tank in roof space
- factory-ï¬tted 3kw immersion heater(s)
- fitted 15mm (g ½) threaded drain cock boss
- ideal for retro-fit applications

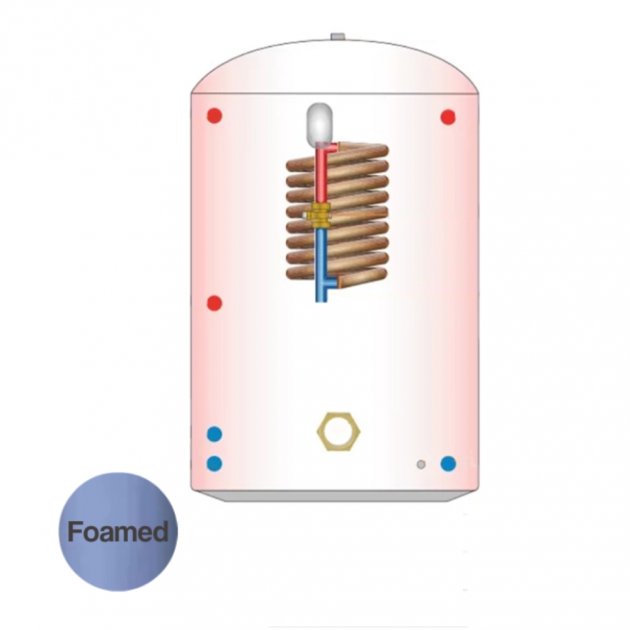

- fully insulated with (50mm) foam to minimise any heat loss
- available in 115- 300 litre capacities
- attractive blue finish
- easy to install time-saving option
- manufactured in accordance with bsi566:2002 (part l)
- bespoke options available
- supplies mains pressure hot water & high flow rates
- up to 3 bar max pressure / 15 18l litres per minute domestic flow rate
- integral parts easily accessed
- 10 year warranty*

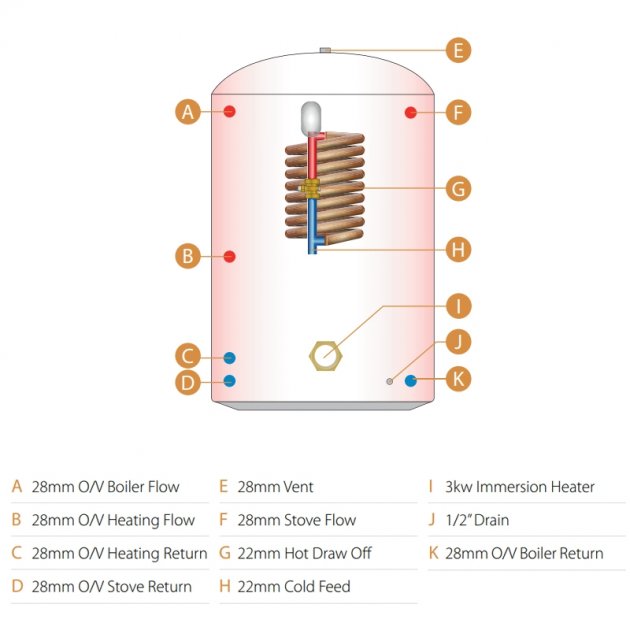

technical specifications:
- brand: telford
- product code: tsv200/3114
- cylinder type: combination/ vented
- cylinder height: 1850mm
- cylinder diameter: 450mm
- capacity: 200 litre
- immersion heater rating: 3 kw
- orientation: vertical
- material: copper
- colour: blue
| Brand | Telford |
|---|
