Further Information

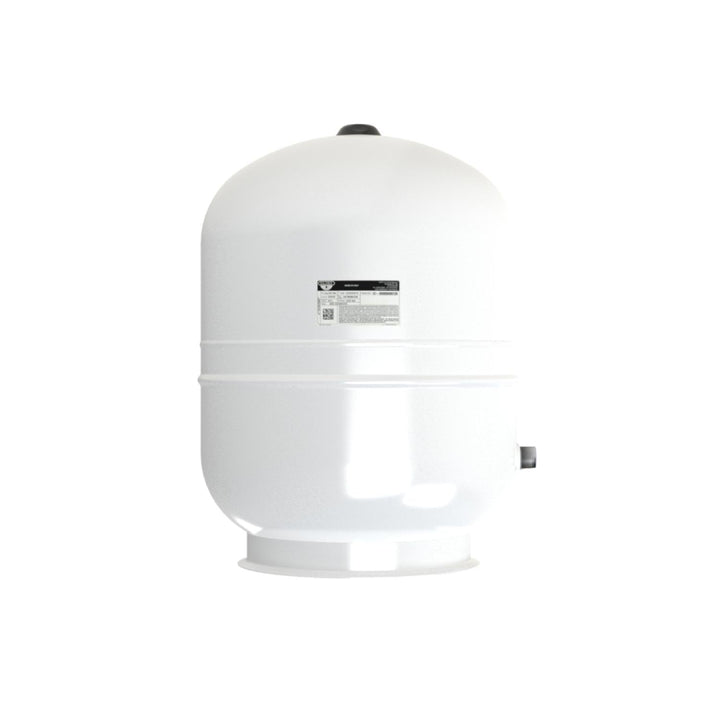

zilmet 80-liter solar plus is a membrane expansion vessel manufactured according to the ped 97/23 ec and en 13831 standards, suitable for solar systems, according to din 4757 and en 12977. the vessel is equipped with a special solar membrane designed as a diaphragm, which separates the gas from the solar liquid. made in italy and comes in red color.
technical specifications:
- brand: zilmet
- part no: 11a2008001
- product type: solar plus expansion vessels
- capacity: 80 litres
- material: carbon steel
- colour: white
- diameter: 450mm
- height: 608mm
- max. operating pressure: 10 bar
- max. operating temperature: -10°c - 110°c
- connections: 1"" bsp
- factory pre-charge: 2.5 bar
- manufacturer warranty: 1 year
Specification
| Brand | Zilmet |
|---|
Zilmet Solar Plus Red Expansion Vessel For Solar Systems
