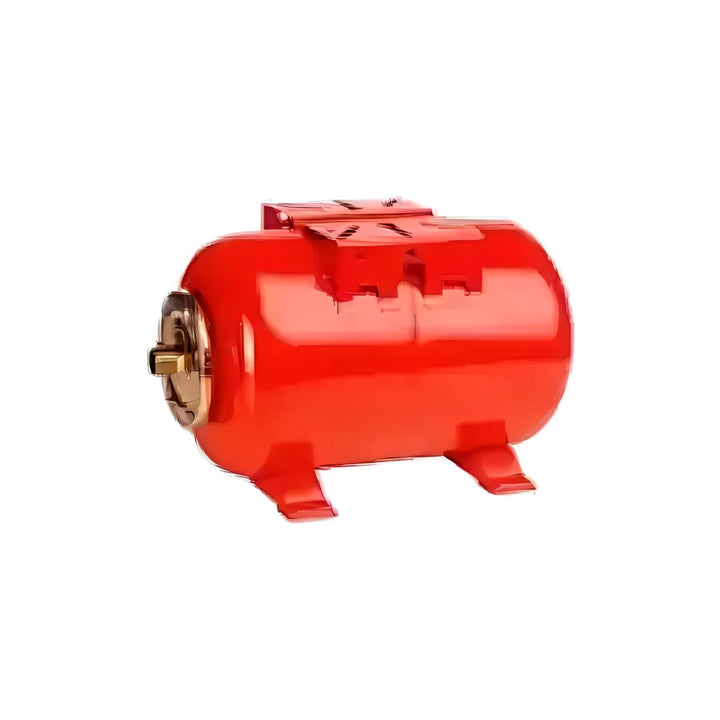

zilmet ultra pro 200 litre red horizontal expansion vessel is suitable for any modern installation and can be applied to any type of irrigation pump, centrifugal pump, and booster seats. made in italy and comes in red colour. the food-grade membrane is replaceable. the membrane pressure tank's actual volume is superior to that of a normal tank; therefore, it has a smaller footprint at equal water yield, the minimum pump starts, and is energy-saving. the range of different sizes and the choice between galvanized or stainless steel flanges ensure that the ultra pro pressure tanks meet the requirements of the end user. the tank is factory tested and certified according to eu directive 97/23/ec. the maximum duration of the membrane is assured as the membrane itself cannot bend or rub against the plate as it is fixed above to the connection and below to the flange.
technical specifications:
- brand: zilmet
- part no: 1100020007
- product type: ultra-pro expansion vessel
- capacity: 200 litres
- material: carbon steel
- colour: red
- diameter: 550mm
- height: 580mm
- max. working pressure: 10 bar
- max. operating temperature: 70°c
- factory pre-charge: 1.5 bar
- manufacturer warranty : 1 year
| Brand | Zilmet |
|---|
