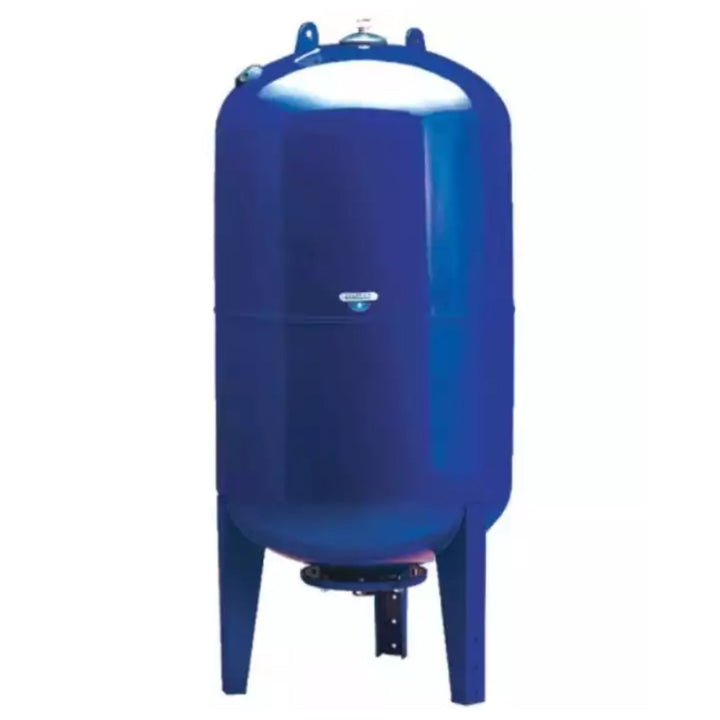

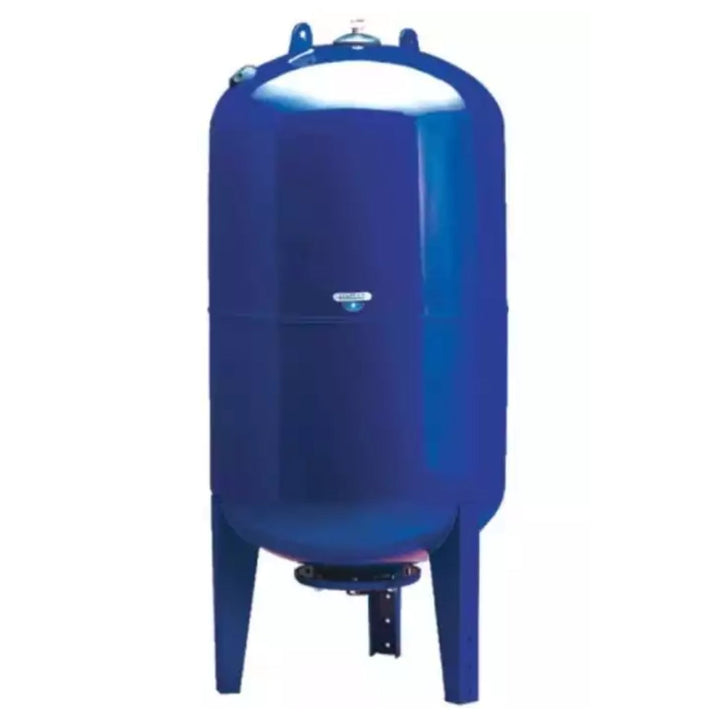

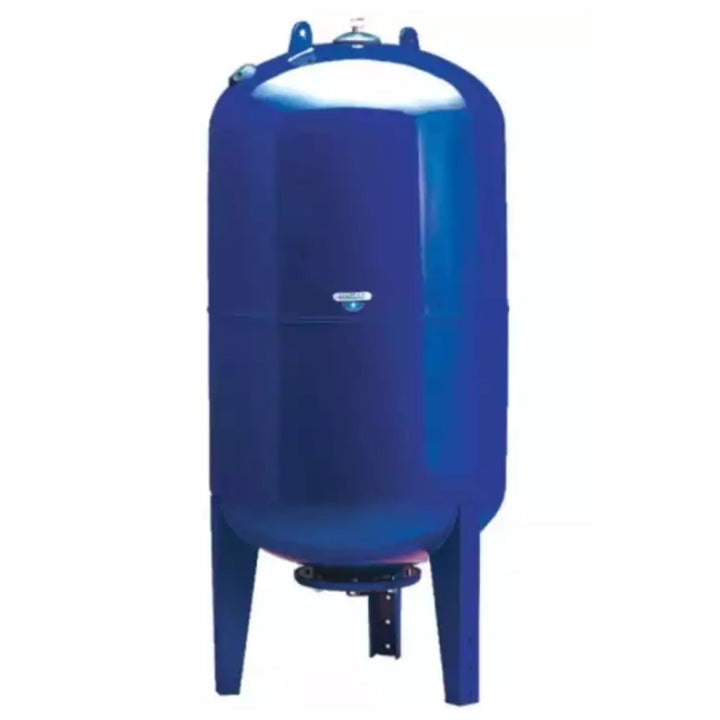

Zilmet Ultra-Pro Vertical High Pressure Potable Expansion Vessel, Blue

zilmet ultra pro 100 litres blue vertical is suitable for any modern installation and can be applied to any type of irrigation pump, centrifugal pump, and booster sets. the food-grade membrane is replaceable. the membrane pressure tank's real volume is superior to that of a normal tank; therefore, it has a smaller footprint at equal water yield, the minimum pump starts, and is energy-saving. the wide range available, the vertical and horizontal versions, makes zilmet pressure tanks suitable for any application. made in italy, the tank is factory tested and certified according to eu directive 97/23/ec. the maximum duration of the membrane is assured as the membrane itself cannot bend or rub against the plate as it is fixed above to the connection and below to the flange.

technical specifications:

• brand: zilmet
• part no: 1100010055
• product type: ultra-pro 16 bar expansion vessel
• vessel capacity: 100 litres
• colour: blue
• diameter: 450mm
• height: 910mm
• max. working pressure: 16 bar
• max. operating temperature: 70°c
• factory pre-charge: 2 bar
• manufacturer warranty: 1 year
